Server Cabinet RM-SECB
RM-SECB tus qauv neeg rau zaub mov series txee yog tsim nyog rau cov cheeb tsam uas muaj cov khoom siv sib txuas lus xws li chav sib txuas lus hauv network, IDC chav, chav qhia multimedia, thiab chav saib xyuas.Lawv yog siv rau centralized installation thiab tswj cov khoom sib txuas lus.Raws li kev xav tau ntawm kev lag luam tam sim no, peb lub tuam txhab tau tsim ntau yam qauv ntawm cov txee, suav nrog C series, B series, thiab Q series, kom tau raws li qhov xav tau ntawm cov xwm txheej sib txawv.
Product Advantage
- Lub txee txais ib qho kev sib sau ua ke, uas tuaj yeem txhawb nqa tag nrho kev faib tawm ntawm lub txee lub cev.

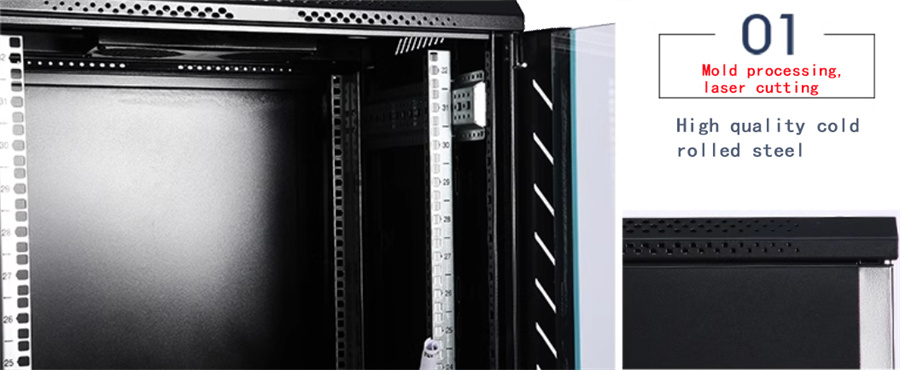

- Lub txee txais yuav high-precision pwm nias thiab laser txiav, nrog cov neeg siab thiab flatness.
- Lub txee yog cov qauv tsim, txawv txee hom nrog tib yam khoom thiab cov khoom, yooj yim kom ua tiav cov neeg hloov khoom.
- Txhawb ntau yam khoom siv hluav taws xob hloov pauv (cov cua txias hauv nruab nrab, khib cua txias, kiv cua, cua txias).
- Txhawb kev sib koom ua ke ntawm ntau yam khoom siv hauv kev lag luam (kev sib txuas lus, lub zog, kev cia khoom, network, kev pab cuam, kev kawm, thiab lwm yam).

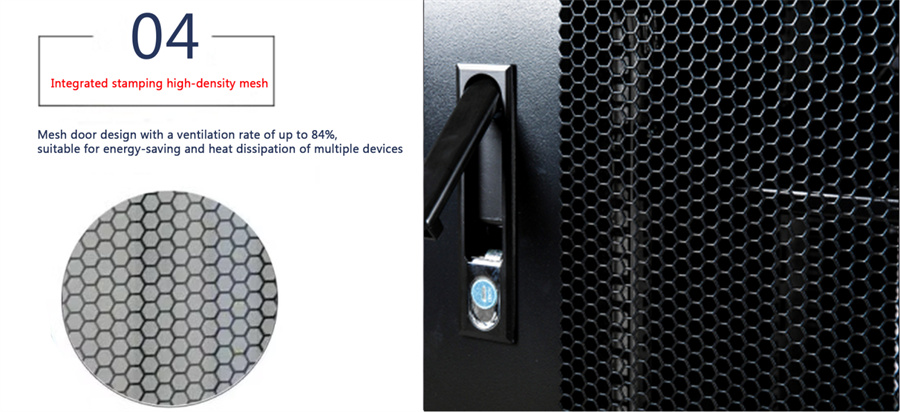

- Siab mesh ntom, muaj kev sib xyaw siab zoo, thiab sib xyaw ua ke stamping tsim cov xim dub thiab dawb dawb tsim rau cov tsos zoo nkauj.
- Muab ntau yam kev soj ntsuam lub tswb ntsuas kev teeb tsa (dej, kev tiv thaiv xob laim, kev nkag mus, kev haus luam yeeb, kub, cuam tshuam, thiab lwm yam).
- Txee anti seismic ntsuam xyuas ntawm 9 siv (nrog rau txoj cai los ntawm daim ntawv pov thawj tshuaj xyuas).

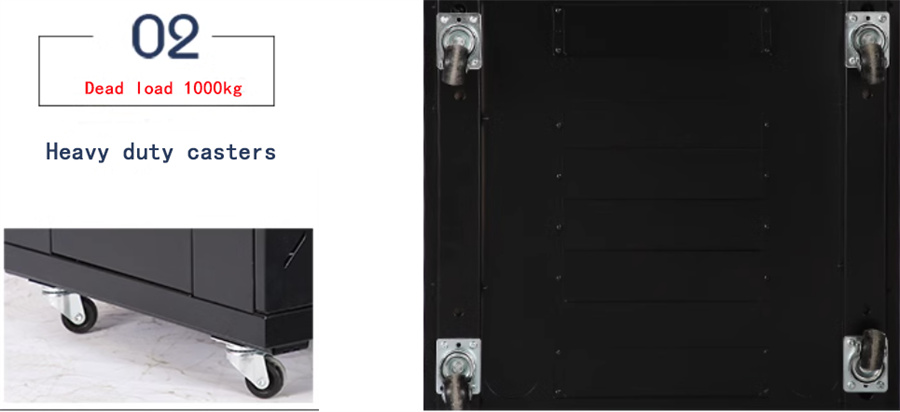

- Lub txee muaj lub zog thauj khoom siab, tsim nyog qauv, thiab tuaj yeem txhawb nqa qhov siab tshaj plaws ntawm 2000kg ib lub txee.
- Txee FSU cov cuab yeej siv hluav taws xob, lub tshuab hluav taws xob, kev tswj xyuas qhov kub thiab txias thiab lwm yam khoom siv hluav taws xob, cov khoom lag luam tau ua tiav ua ntej kev sib tshuam thiab kev sib cuam tshuam.

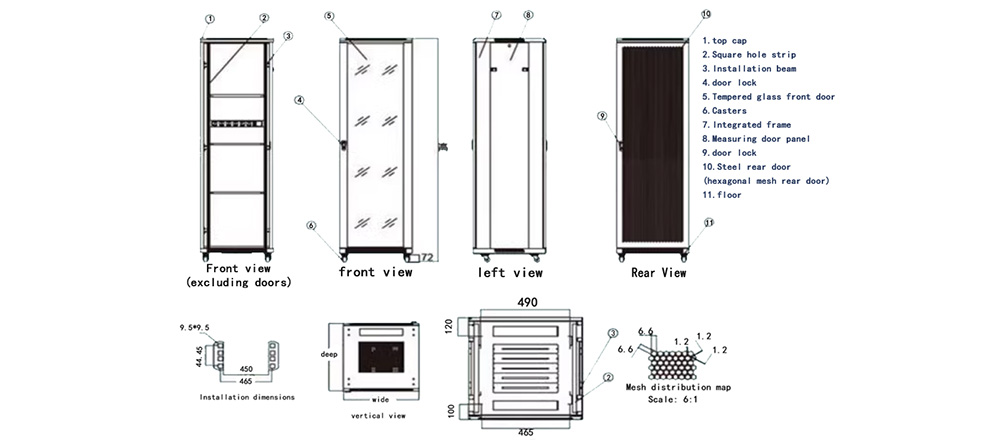

Cov duab kos duab

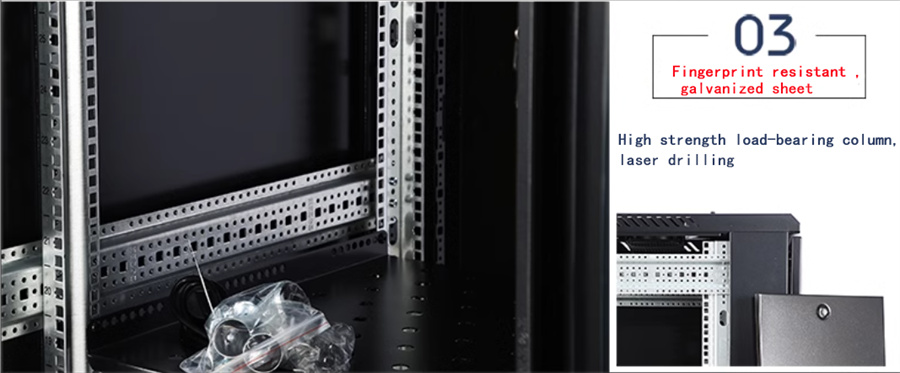

Khoom Taw Qhia
- Txee qauv yog ua los ntawm cov ntawv zoo galvanized
- Lub txee ncej yog ua los ntawm 2.0mm galvanized steel phaj
- Txhua qhov rooj vaj huam sib luag ntawm lub txee yog ua los ntawm 1.2mm galvanized ntawv
- Sab hauv txee yog ua los ntawm 2.5mm galvanized ntawv
- Lub qhov rooj ntawm lub txee yog ua los ntawm 5mm tempered iav

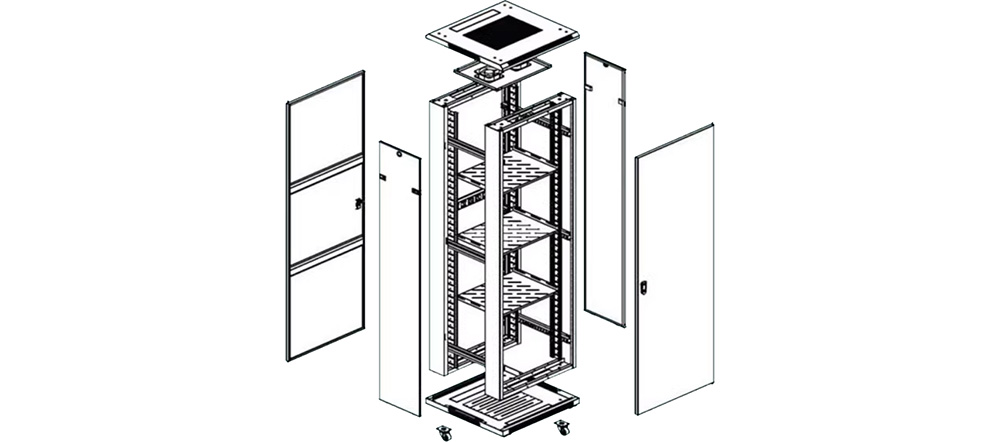

Daim duab nthuav dav

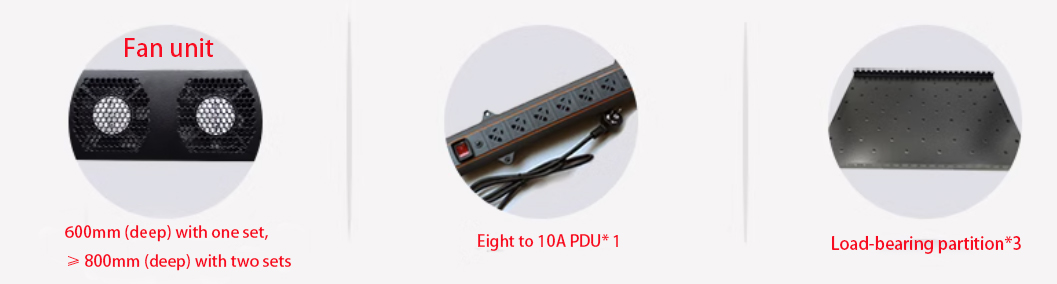

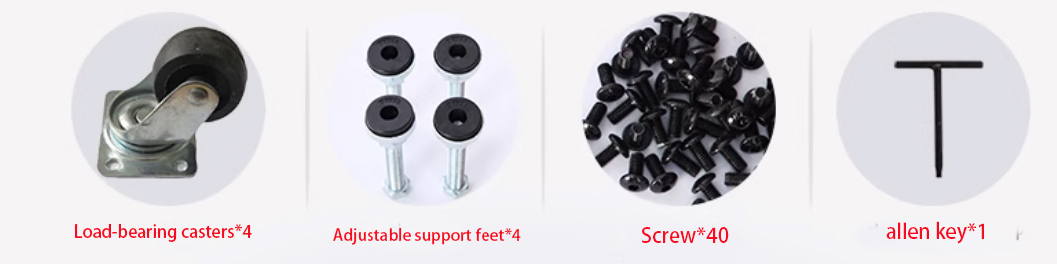

Txee accessories
Qauv Taw Qhia
1. C series
Lub qhov rooj hauv ntej thiab nram qab ntawm C-series txee txais yuav lub qhov rooj siab qhov rooj tsim, nrog qhov qhib siab tshaj plaws ntawm 84%.Qhov kev tsim no ua tau raws li daim ntawv thov scenarios ntawm qhov chaw qhib cua sov dissipation thiab tsim nyog rau qhov chaw me me thiab cov ntawv thov hauv nruab nrab ntawm chav txias.
| RM-SECB-C Series Cabinet Order Guide | ||||||||
| HomTsis muaj | RM-SECB-C1 | RM-SECB-C2 | RM-SECB-C3 | RM-SECB-C4 | RM-SECB-C5 | RM-SECB-C6 | RM-SECB-C7 | |
| Qhov siab | mm | 2200 | 2000 | 1800 | 1600 | 1400 | 1200 | 1000 |
| Dav | mm | 800mm / 600 hli | ||||||
| Sib sib zog nqus | mm | 600mm / 800mm / 900mm / 1000mm / 1200mm | ||||||
| Xim | Dub / Grey, los yog Custom Design | |||||||
| Hom kev teeb tsa | △ | Hauv av | Hauv av | Hauv av | Hauv av | Hauv av | Hauv av | Hauv av |
| Txee Configuration | 1-2set Ntxuam Unit / 3pcs Txheem Txheej / 1pcs 6 ntsis PDU / 1set Pulley / 1set M6 Mounting Screw | |||||||
| Qhov chaw nruab | U | 47 | 42 | 37 | 32 | 27 | 22 | 20 |

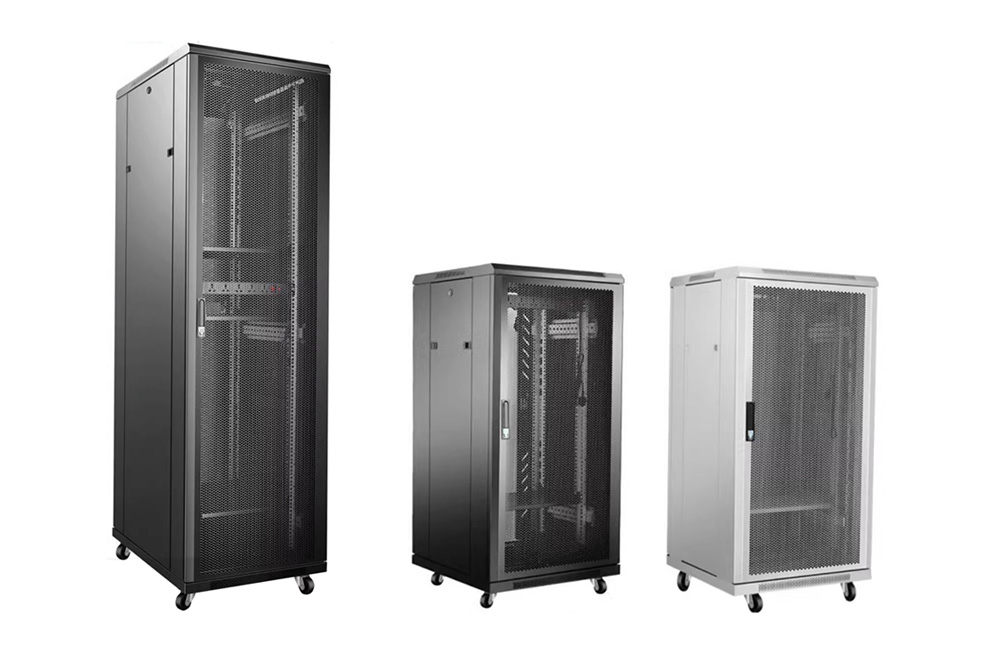

RM-SECBL-C Series Txee
2. B series
Lub qhov rooj iav pem hauv ntej thiab lub qhov rooj hlau tom qab (tag nrho los yog mesh) ntawm B-series txee yog tsuas yog siv nyob rau hauv IDC chav, centralized chav, thiab cov xwm txheej uas yuav tsum tau sealing siab rau sab sauv thiab qis cua txias ducts.Lawv kuj txhawb nqa daim ntawv thov ntawm modular txias channel chav.
| RM-SECB-B Series Cabinet Order Guide | ||||||||
| HomTsis muaj | RM-SECB-B1 | RM-SECB-B2 | RM-SECB-B3 | RM-SECB-B4 | RM-SECB-B5 | RM-SECB-B6 | RM-SECB-B7 | |
| Qhov siab | mm | 2200 | 2000 | 1800 | 1600 | 1400 | 1200 | 1000 |
| Dav | mm | 800mm / 600 hli | ||||||
| Sib sib zog nqus | mm | 600mm / 800mm / 900mm / 1000mm / 1200mm | ||||||
| Xim | Dub / Grey, los yog Custom Design | |||||||
| Hom kev teeb tsa | △ | Hauv av | Hauv av | Hauv av | Hauv av | Hauv av | Hauv av | Hauv av |
| Txee Configuration | 1-2 teeb Ntxuam Unit / 3pcs Txheem Txheej / 1pcs 6 ntsis PDU / 1set Pulley / 1set M6 Mounting Ntsia Hlau | |||||||
| Qhov chaw nruab | U | 47 | 42 | 37 | 32 | 27 | 22 | 20 |

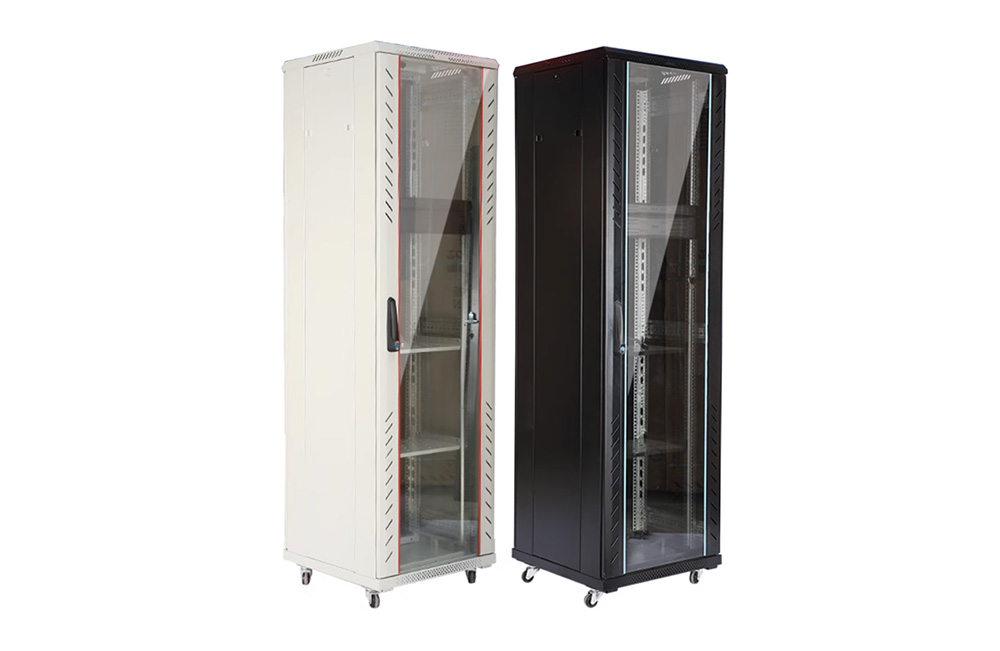

RM-SECB-B Series Txee

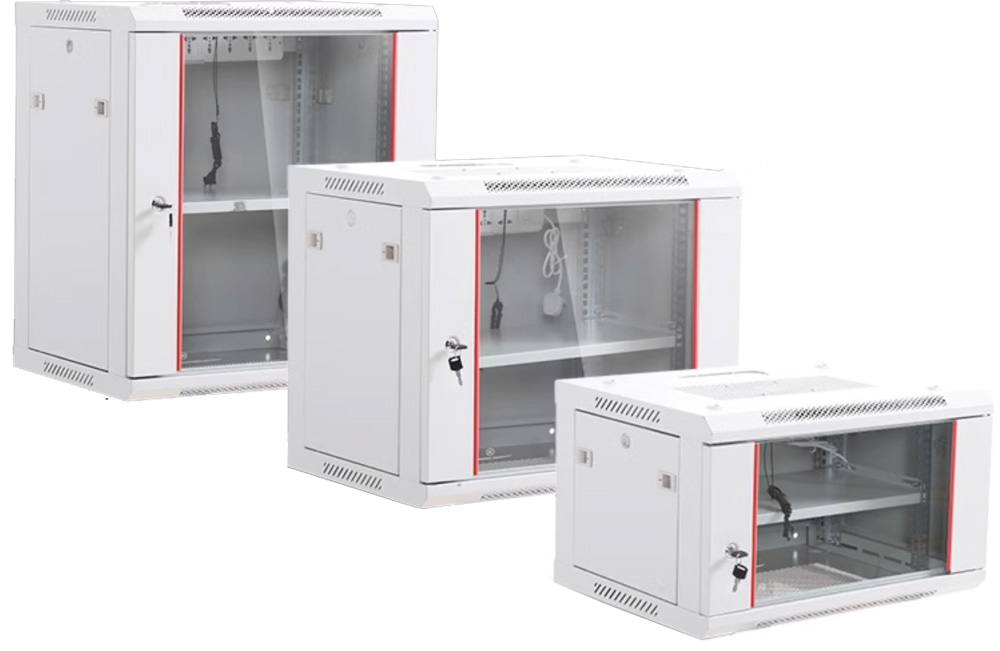

3. Q series
Q series txee yog phab ntsa mounted qauv nrog rau pem hauv ntej iav qhov rooj qauv thiab detachable sab.Lub txee yog tsuas yog siv rau phab ntsa mounted thiab ncej mounted installation, feem ntau yog rau scenarios xws li corridor network khoom, xyuas cov khoom, cia khoom, thiab lwm yam. Nws muaj cov yam ntxwv ntawm lub teeb yuag, siab kev koom ua ke, muaj zog tshav kub dissipation muaj peev xwm, thiab siab aesthetics.
| RM-SECB-Q Series Cabinet Order Guide | ||||
| HomTsis muaj | RM-SECB-Q1 | RM-SECB-Q2 | RM-SECB-Q3 | |
| Loj (H * W * D) | mm | 650 * 600 * 450 hli | 500 * 600 * 450 hli | 300 * 550 * 400 hli |
| Kev Tswj Kub Kub | mm | Q Series Option (nrog / tsis muaj Draft Ntxuam) | ||
| Xim | Dub / Grey, los yog Custom Design | |||
| Hom kev teeb tsa | △ | Phab ntsa-mounted / av | Phab ntsa-mounted / av | Phab ntsa-mounted / av |
| Txee Configuration | 1pcs Txheem Txheej / 1set Pulley / 1set M6 Mounting Screw | |||
| Qhov chaw nruab | U | 12 | 9 | 6 |
RM-SECB-Q Series Txee

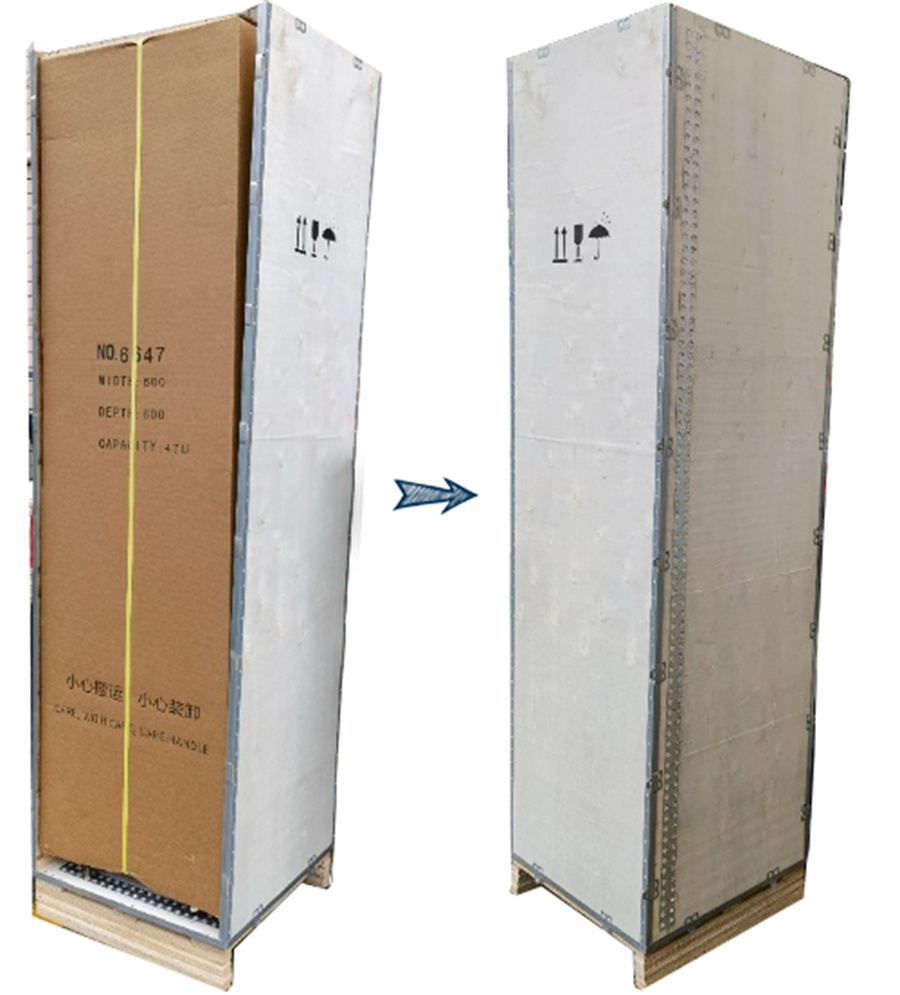

Ntim thiab thauj
RM-SECB series txee yog ntim rau hauv ob txheej txheej, nrog 3-txheej corrugated cardboard thawv rau hauv txheej txheej thiab fumigated ntoo thawv rau txheej txheej, xyuas kom meej tias cov khoom thauj los ntawm hiav txwv, av, thiab thaum lub sij hawm thauj khoom thiab unloading yam tsis muaj deformation. los yog kev puas tsuaj
Cov Khoom Muag Khoom
Kev pabcuam customized:peb lub tuam txhab tsim thiab tsim khoom ntawm RM-SECB series Txee, tuaj yeem muab cov neeg siv khoom tsim kho, suav nrog cov khoom loj, kev faib ua haujlwm, kev sib koom ua ke thiab tswj kev sib koom ua ke, cov ntaub ntawv kev cai, thiab lwm yam haujlwm.
Cov kev pab qhia:kev yuav khoom ntawm kuv lub tuam txhab cov khoom rau cov neeg siv khoom kom txaus siab rau lub neej ntawm cov khoom siv cov kev taw qhia, suav nrog kev thauj mus los, kev teeb tsa, daim ntawv thov, disassembly.
Kev pab cuam tom qab muag:Peb lub tuam txhab muab tej thaj chaw deb video thiab lub suab tom qab-muag kev pab cuam hauv internet, nrog rau cov kev pab them nqi hloov mus rau lub neej rau cov khoom seem.
Kev pab cuam:peb lub tuam txhab tuaj yeem muab txhua tus neeg siv khoom ua tiav kev muag khoom ua ntej, suav nrog kev sib tham txog kev daws teeb meem, ua tiav cov qauv tsim, teeb tsa, thiab lwm yam kev pabcuam.
RM-SECB series txee tuaj yeem tsim nyog rau ntau daim ntawv thov kev lag luam, suav nrog kev sib txuas lus, lub zog, kev thauj mus los, lub zog, kev ruaj ntseg, thiab lwm yam.
